Kitchen Printer
The Kitchen Printer feature reference explains how to configure and use a kitchen printer to print food service orders from a POS terminal or Verifone Commander.
Revision History
04/25/2016
Converted document format into Framemaker.
04/25/2016
Added Commander Site Controller Chapter.
09/01/2016
Updated format.
09/20/2016
Kitchen Printer Enhancement - Managed Module functionality and connection to the POS Terminal.
12/9/2016
Kitchen Printer Enhancement - Managed Module functionality and connection to the Site Controller.
06/18/2019
Updated the Commander section.
03/25/2024
Added a note about third party kitchen printer implementations to the overview section. Updated Kitchen Printer Rule Instruction. Removed Sapphire section.
Overview
Feature Description
The Kitchen Printer Feature Reference details the configuration and utilization of a kitchen printer used specifically to print food service items when orders are placed for food service preparation. The kitchen printer can be setup and connected to a Verifone Point of Sales (POS) terminal or it may be configured to the Commander Site Controller directly.
Selected items and subitems, or Price Look Up (PLU) codes, are configured to print to the kitchen printer when an order has been placed at the POS terminal. The order can be tendered (paid for) or suspended (later payment).
Additionally, non-food service items, such as fuel, may be included in the same transaction, however, if fuel is included in a suspended transaction, the fuel sale remains in a claimed status. This means the fueling position will be unavailable until customer remits payment for the transaction.
The instructions within this guide do not cover any third party kitchen printer implementations.
Refer to their specific documentation for additional details on configuring a kitchen printer.
Devices and Requirements
Supported Software
Commander Site Controller or RubyCi Base 45 or higher software
Supported Hardware Configurations
Commander Site Controller with C18 / Topaz / Ruby2 /
RubyCi with C18 / Topaz / Ruby2
Hardware Configuration
Kitchen Printer -- Utilizes same printer, cable and connector used for the POS terminal receipt printing, but requires a separate power supply. It has the same baud rate (dip switch settings) as a C18/Topaz/Ruby2.
Printer Models:
RP 310: P/N P040-02-020
RP 330: P/N P040-02-030
Power Supply: P/N PWR050-001-01-B
Power Supply Power Cord: P/N CBL268-008-01-A
Configuring the Kitchen Printer
Verify all communication, connections and system downloads have been completed, tested and operational before beginning the kitchen printer configuration.
Prior to kitchen printer configuration, two main components must be considered:
Configuring POS terminal menus to accommodate the food ordering process.

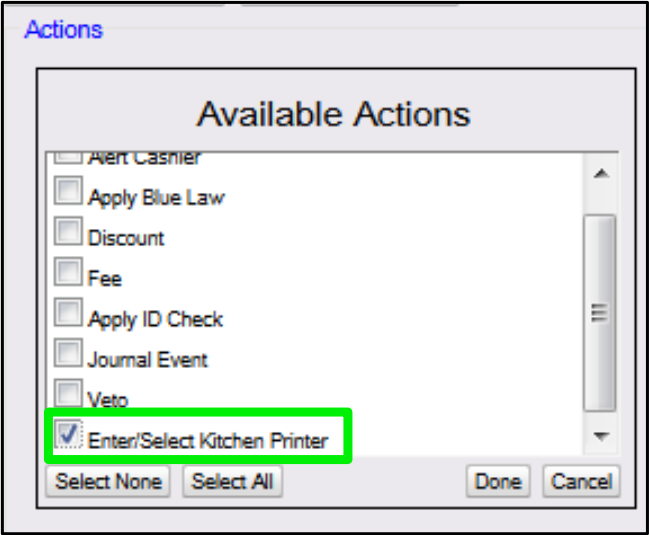

Configuring food service items to print to the kitchen printer when an order has been placed.
Pre-Installation Menu Preparation
The following pre-installation list will facilitate setup and maintenance of the Kitchen Printer feature.
To specifically review how to configure menus and menu chains, see the "POS Menu User Reference."
PLUs
Create the PLUs
Create the PLUs for all food service products including condiments and toppings.
Link the PLUs
Link only PLUs to Departments that contain kitchen printer menu items. Include all zero priced PLUs (i.e. condiments and subitems) in the PLU price book.
Delete obsolete menus
Delete obsolete menus or menu items.
List food service items
List all food service items including PLU#, description, price and department assignment.
List condiments and upsells
List all condiments and upsells, i.e. lettuce, tomato, mayo, cheese, extra cheese, etc.
Establish PLU codes
Establish a range of available PLUs Codes housed in the price book to be used specifically for food service items.
If an item is sent to the kitchen printer, it must have an associated PLU.
Food Service Items
Group the food service items

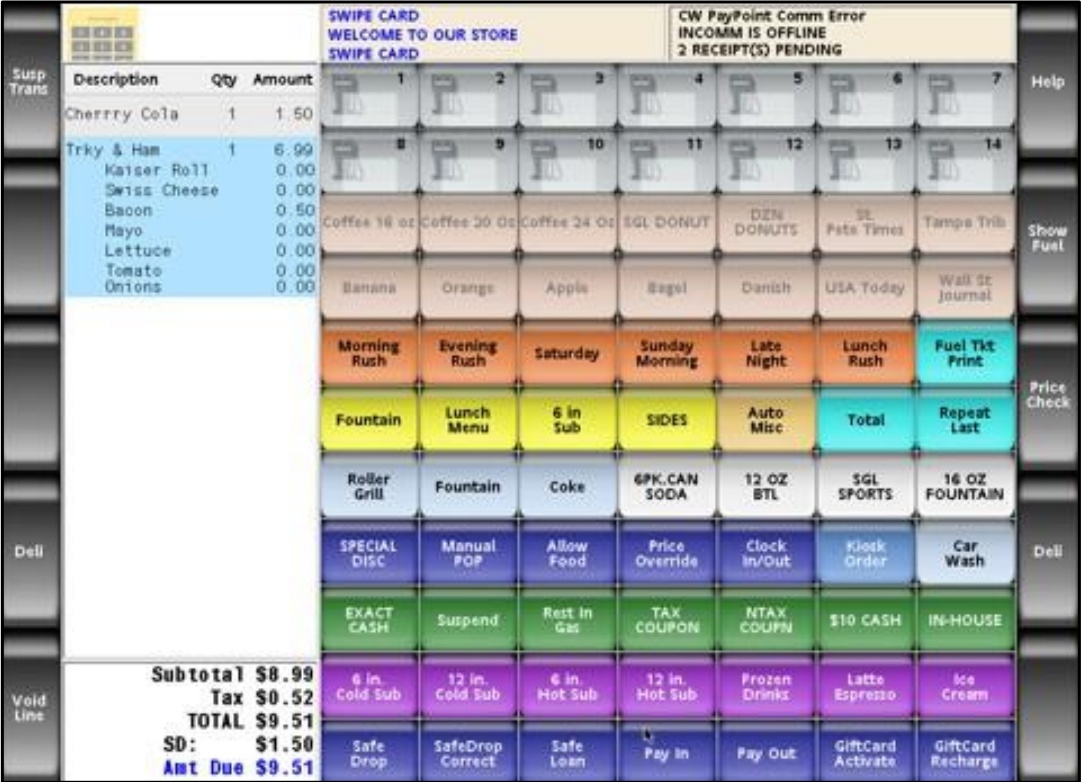

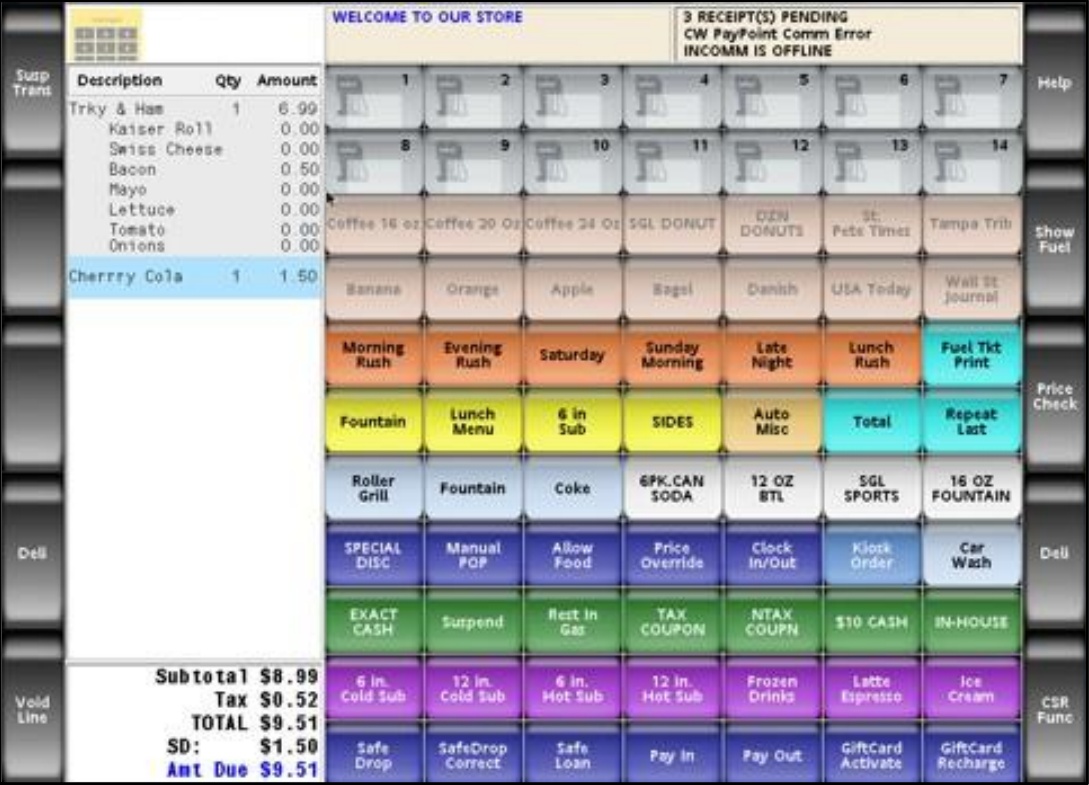

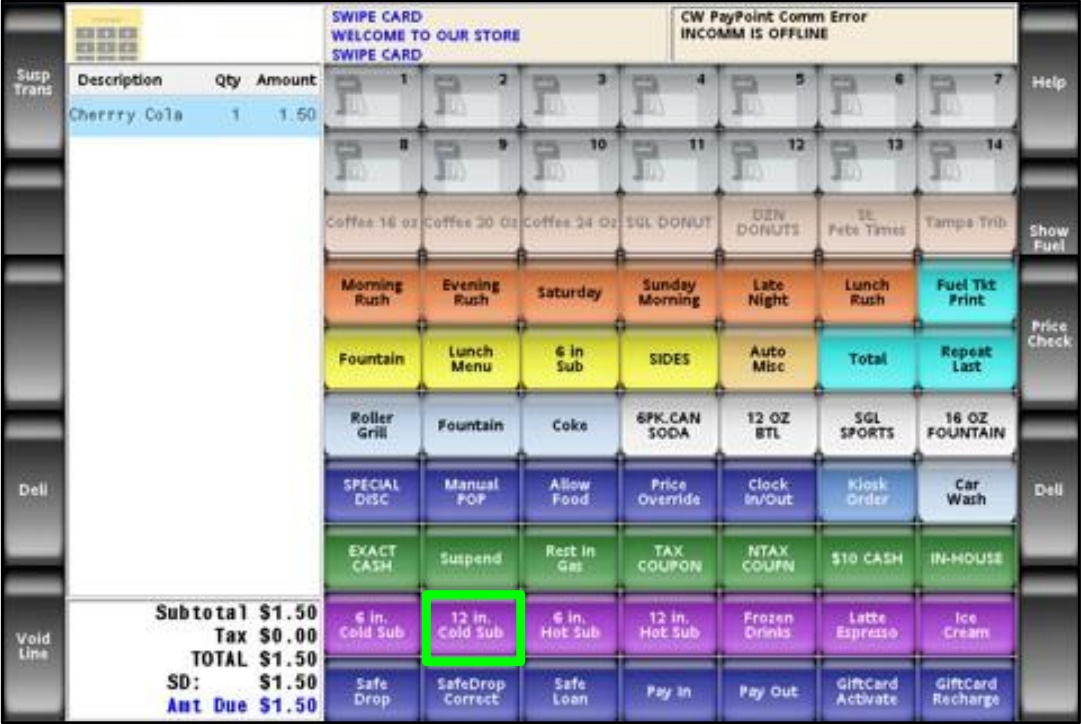

Placing a food service order on a POS terminal is different from placing a food service order on a self-service kiosk.
On the kiosk, the next screen is determined by the selection that is made.
With the POS terminal, the next screen is always the same regardless of the selection made.
Do not combine 6" subs and 12" subs on the same menu unless the options and upsells are the same; 12" upsells are more expensive.
Configure menus as single-select

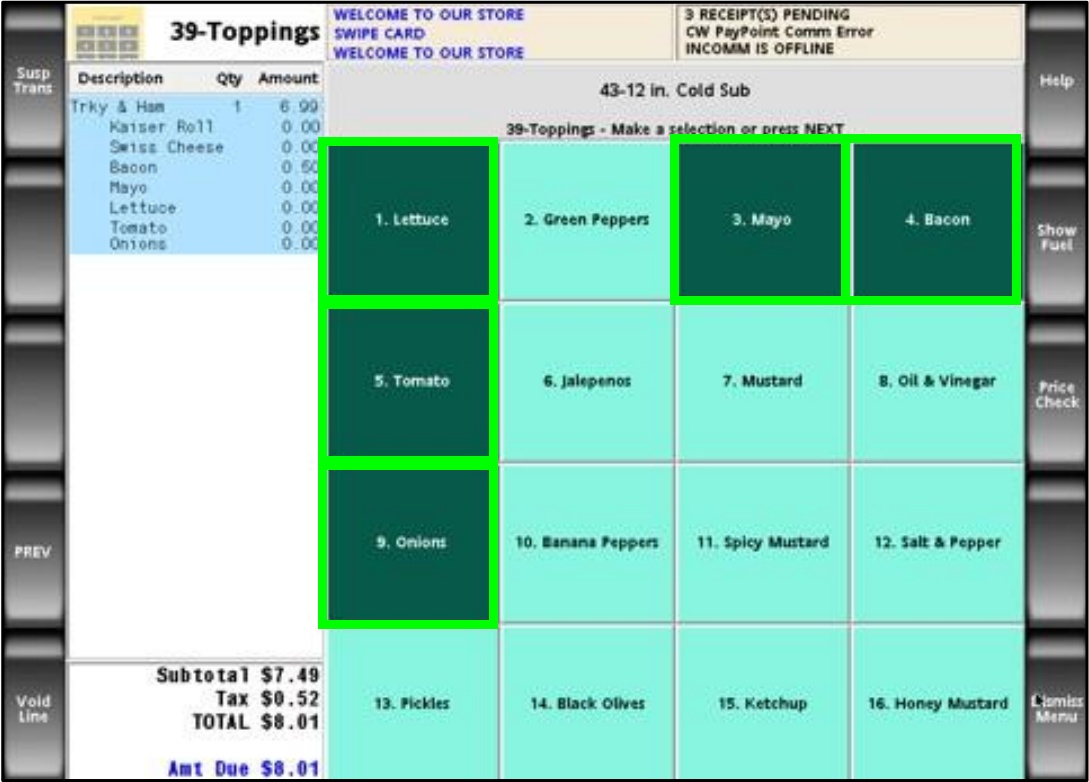

All menus should be configured as single-select. Only the last menu in the chain is configured (optional) as multi-select.
When placing a food service orders at the POS terminal, it uses a linked menu feature to lead clerks through a series of menus to build the item order.

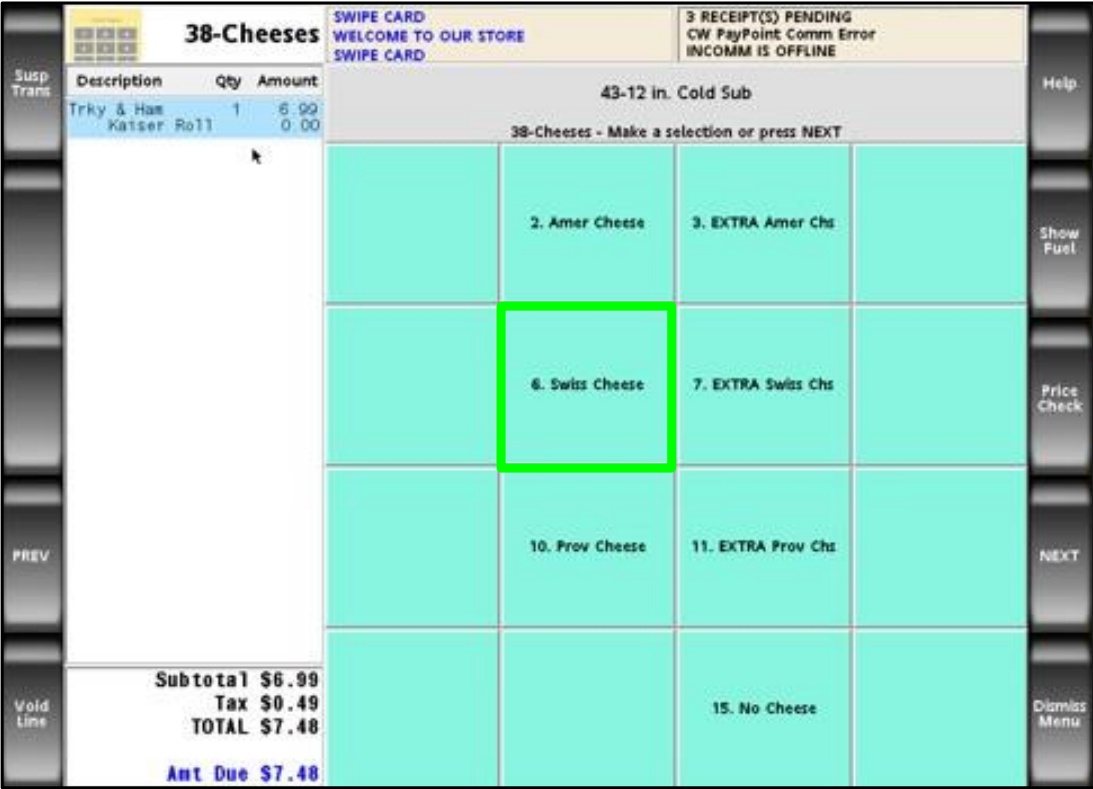

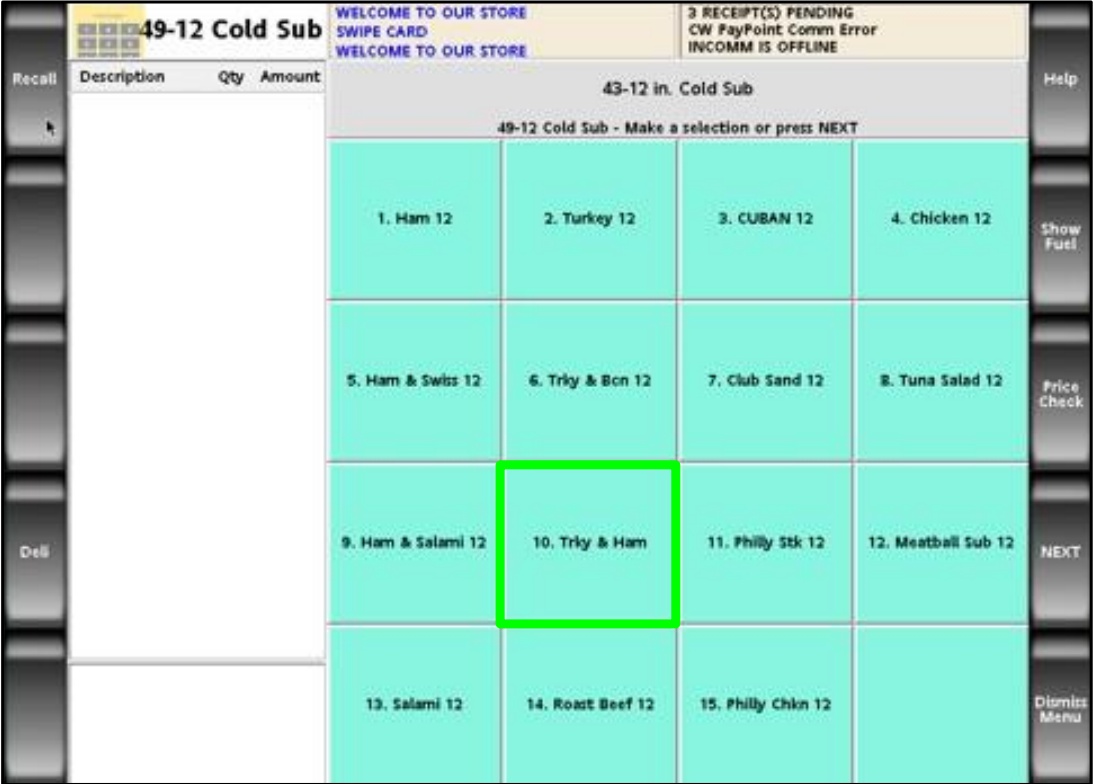

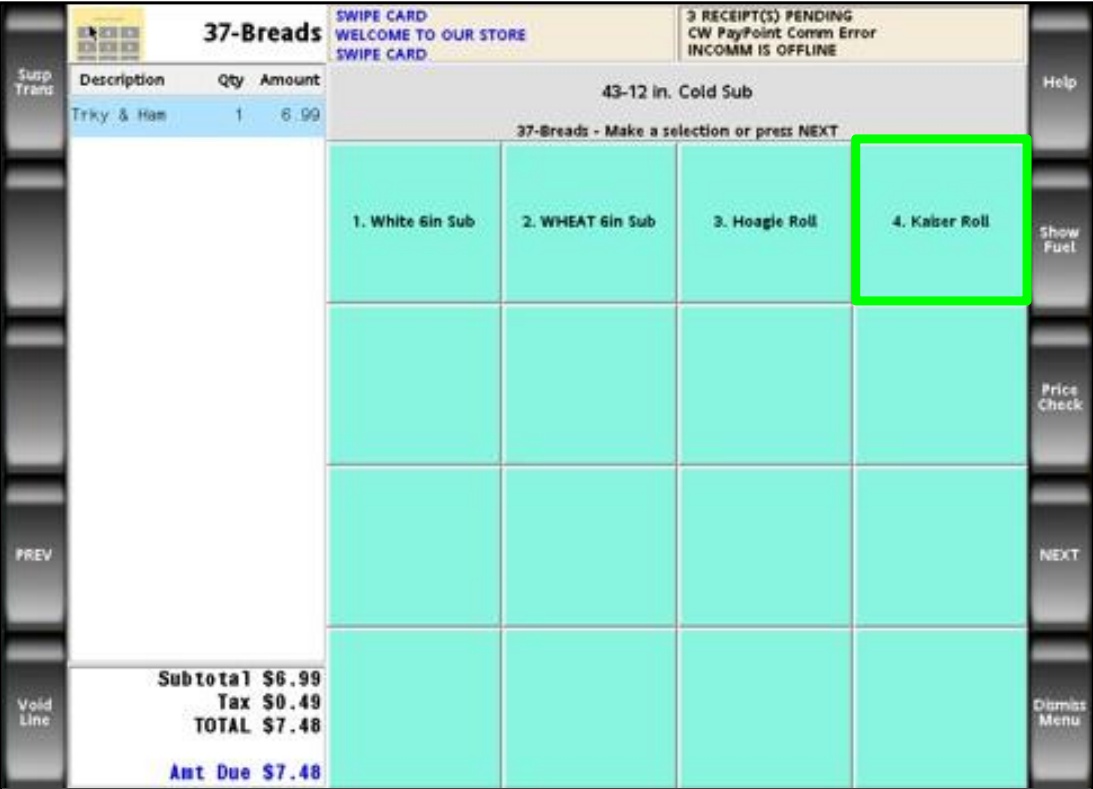

A sandwich order can include a menu with sandwich types (items) and a series of subitem menus (breads, cheeses, condiments, etc).
The first item is always the menu item and all subsequent items are subitems.
Meal Deals
Implement signage
Implement signage to inform customers of food service promotions.
Utilize promotions

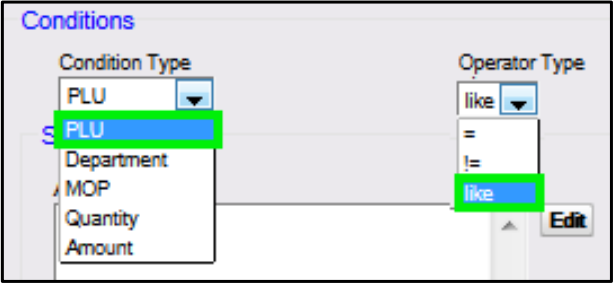

Utilize Verifone Integrated Promotions (VIP) NAXML Combos and Mix and Match to configure automatic discounts.
See the "VIP NAXML Mix and Match Feature Reference" to configure automatic discounts on the Commander Site Controller.
Design Menus

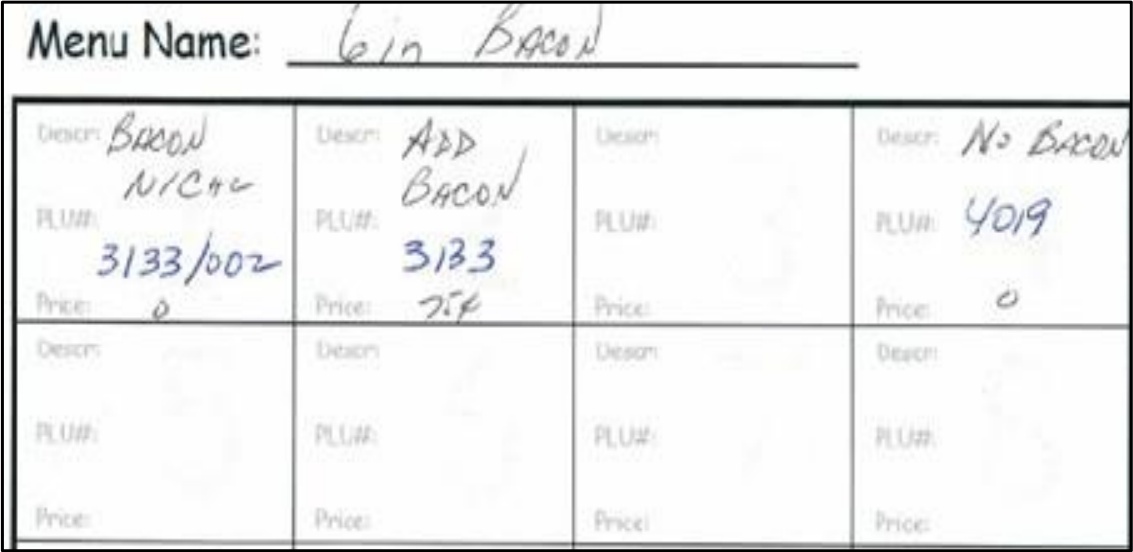

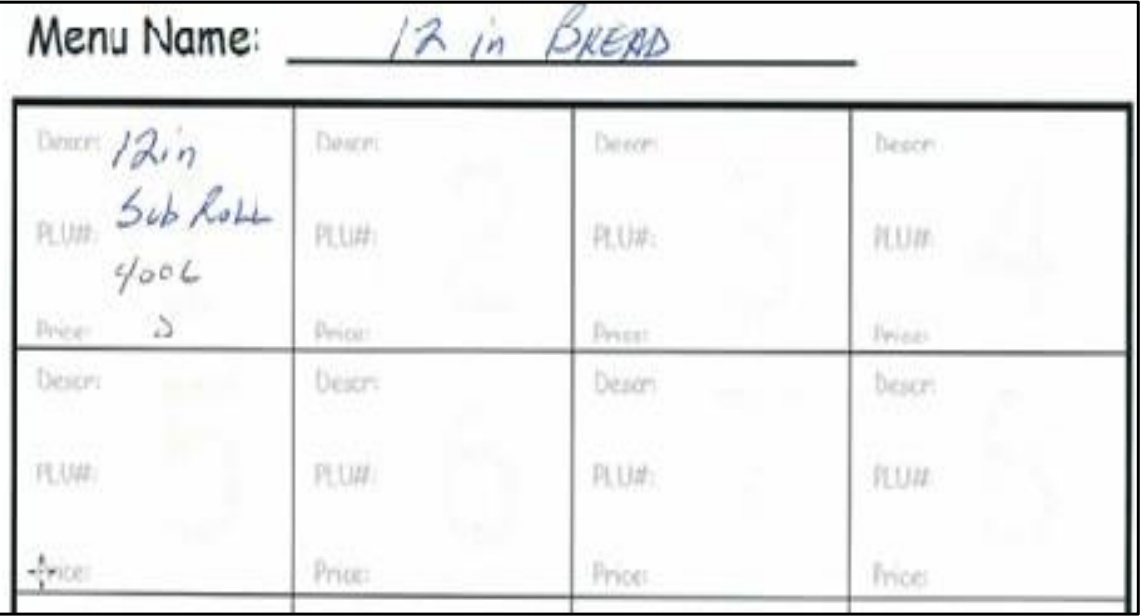

Utilize the menu worksheets

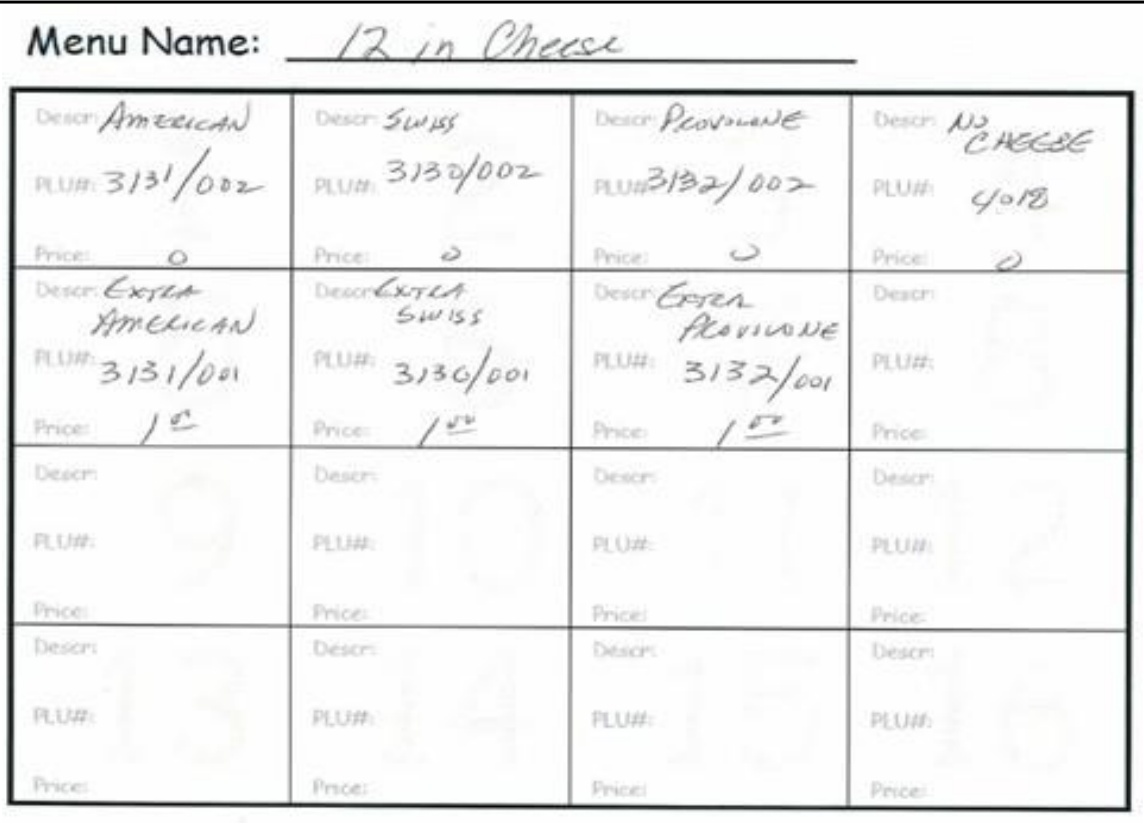

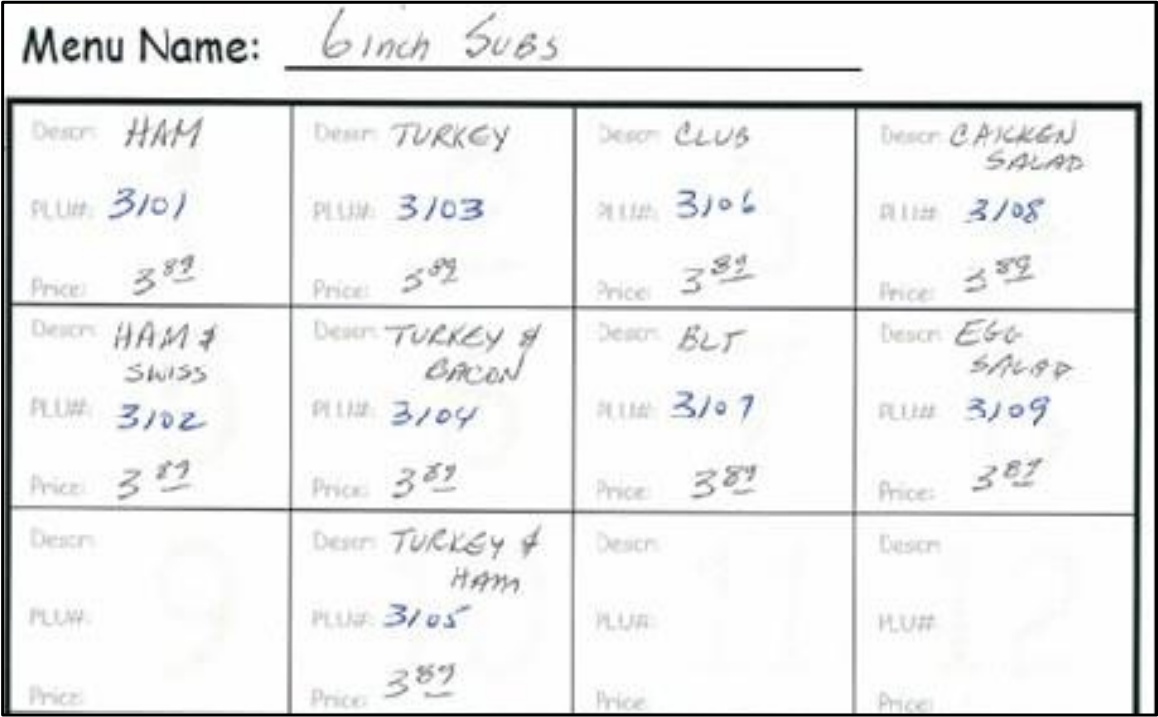

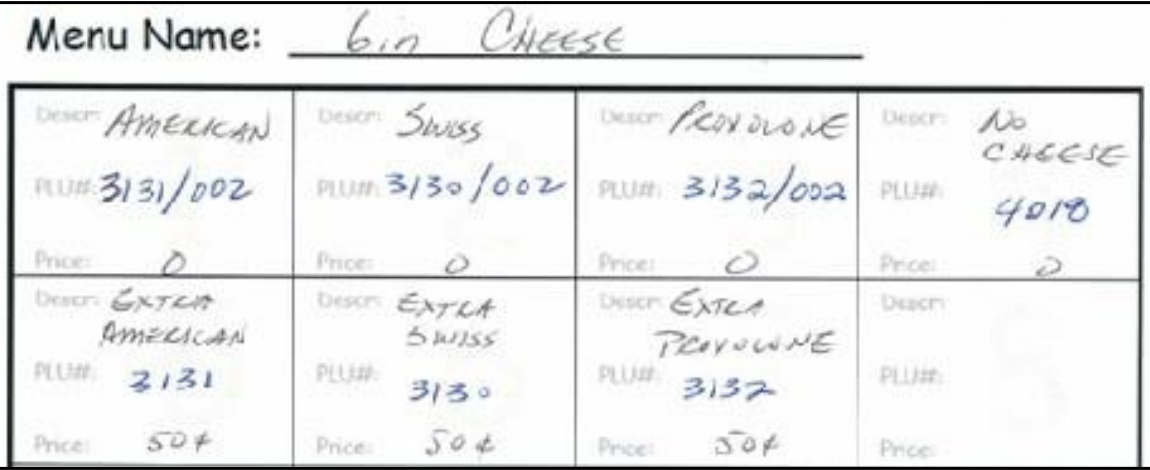

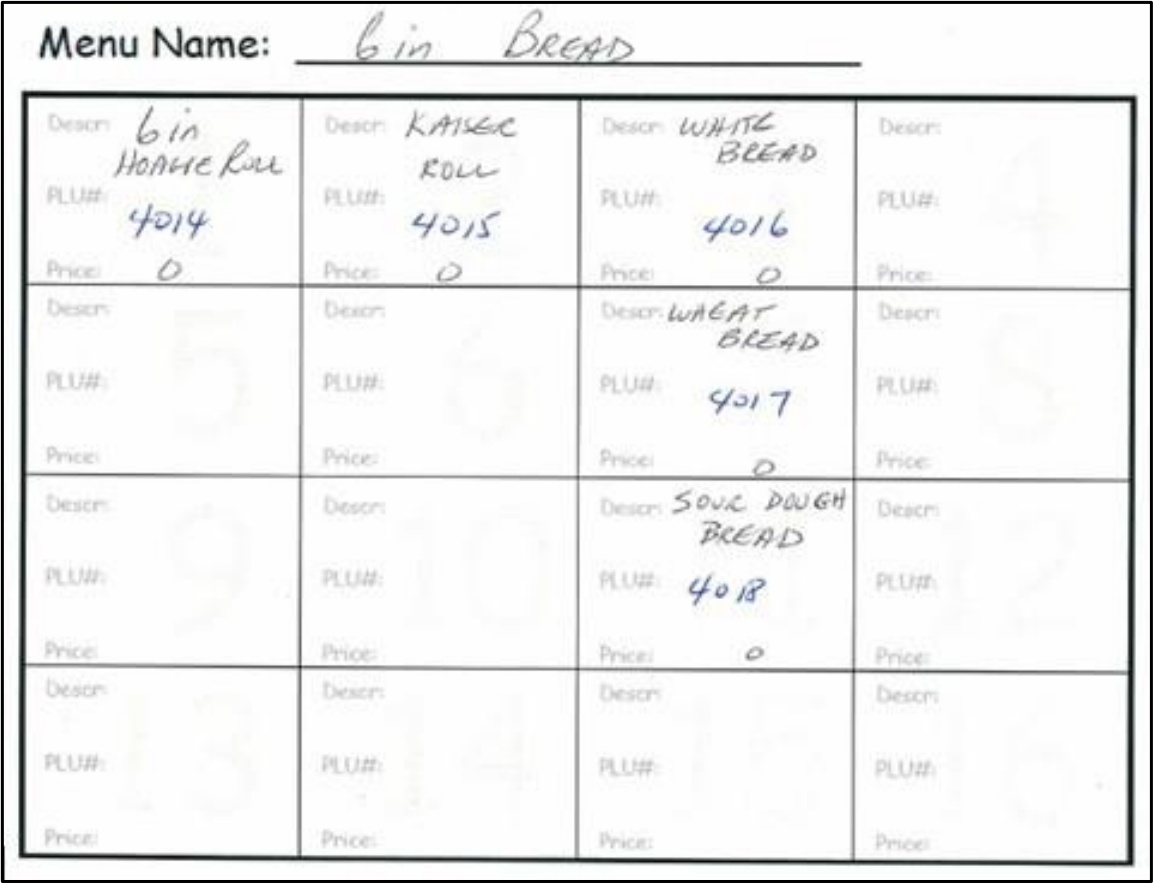

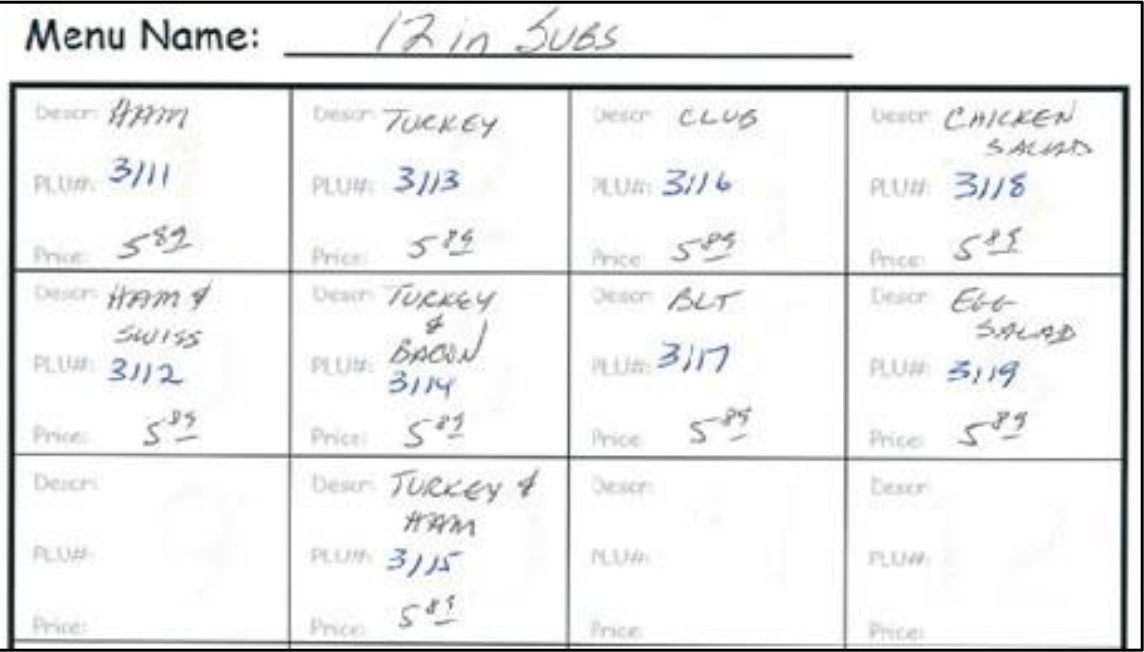

Utilize the menu worksheets provided (see Appendix) to facilitate food service menu preparation. Worksheets include 4x4 grids to accommodate 16 item entries to be displayed for menu item selection.
Insert a menu header
Insert a menu header (name) to include when a food service order is placed.
Complete each block
Complete each block with an appropriate PLU#, description and price.
The PLU description and number identify the correct PLU for menu assignment. Prices help differentiate between item size, subitems upsells and zero-priced items.
Configuring with the Commander Configuration Client
The first step in configuring a kitchen printer is to determine the what host device the printer will be connected to. This is key.
Two options exist to host the Kitchen Printer Service:
Site Controller
POS Terminal
Site Controller
When the kitchen printer is connected to a port on the site controller, utilize the below instructions to configure Kitchen Printer Service.
Navigate to Managed Modules
Navigate to Configuration Client > Tools > Managed Modules.

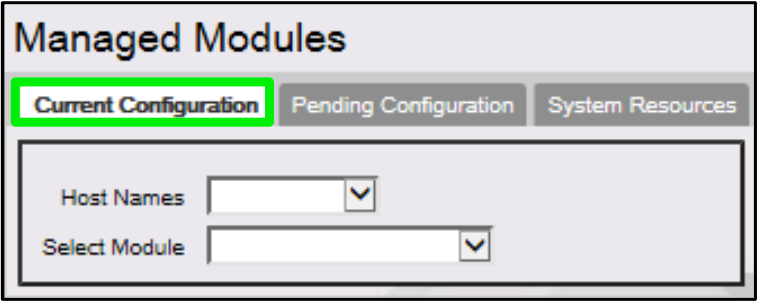

Open Current Configuration
The Managed Modules window displays. Select the [Current Configuration] tab.

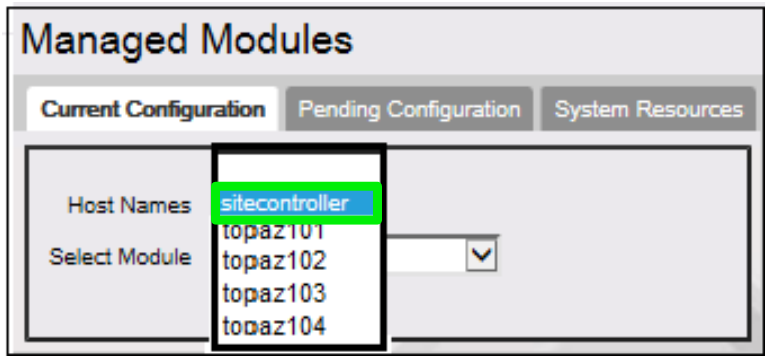

Select the host
From the Host Names drop down list, select [site controller].

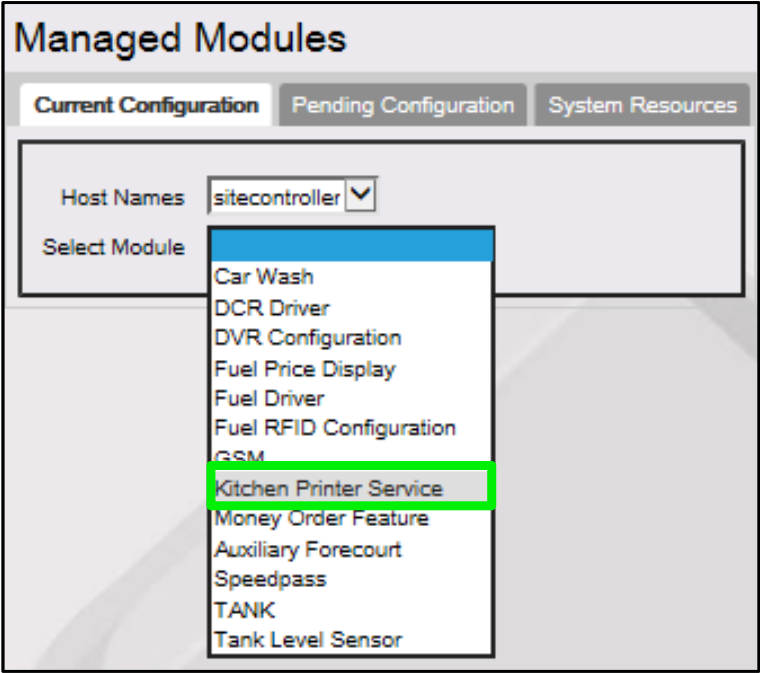

Select Kitchen Printer Service
From the Select Modules drop down list, select the [Kitchen Printer Service] managed module.
Do Not Enable Kitchen Printer Service. It must remain un-selected until all configuration is complete and settings.
Host Parameters
Host Names
A set list populated with the site controller and all POS Terminals that are 'reachable' to be configured. Reachable is defined as Topaz/Ruby2 that are functioning properly after being installed and have established connectivity with the site controller.
Select Module
A set list populated with all the configurable modules for the selected system.
The modules listed for the site controller are the same systems listed in previous applications, with the exception of 'Kitchen Printer Service'.
Select the kitchen printer ID

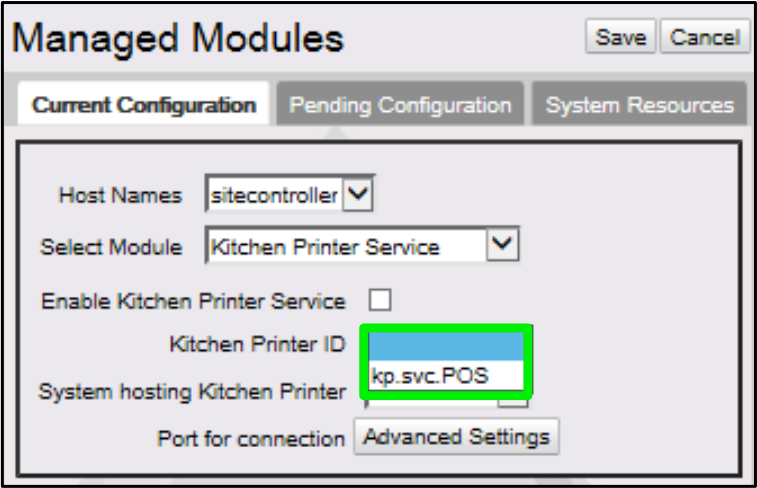

From the Kitchen Printer ID drop down list, select [kp.svc.POS].
Select the hosting system and port
From the System hosting Kitchen Printer drop down list, select [site controller].
From Port of connection, select the [Advanced Settings] option.

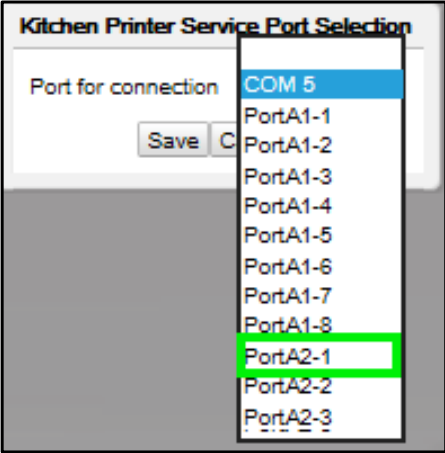

From the Advanced Settings listing, select the <Port for connection>.
Save the configuration
Select [Save].
Review recommended ports
The recommended ports to connect the kitchen printer to on the Commander Site Controller are A2-1 through A2-4.
The recommended RubyCi ports to connect the kitchen printer are COM3 and COM4.
Fuel and DCRs are connected to COM1 and COM2 on the RubyCi as they have transmit and receive lights in the diagnostic panel for these two ports only.
Review field descriptions
Kitchen Printer ID
Sets the host's unique ID for the Remote Method Invocation (RMI) Registry. There already exists an RMI service on the site controller that all hosts utilize to present their Managed Module framework RMI services. The Kitchen Printer ID is also needed when configuring the 'Rule Manager' for Sales to use the Kitchen Printer feature.
System Hosting Kitchen Printer
Defines the system host, in this case the site controller, the kitchen printer device is physically connected to.
Port for Connection
Sets the dock the kitchen printer will be connected to on the site controller.
Advanced Settings
Lists the port connections on the site controller where the kitchen printer can be physically connected.
Enable the service
Lastly, select the [Enable Kitchen Printer Service] checkbox to enable print services.
Before selecting Enable Kitchen Printer Service, verify the configured settings, including ‘Advanced Settings’ configured.
Verify the service
Select [Save] to accept, or [Cancel] to exit without saving changes.

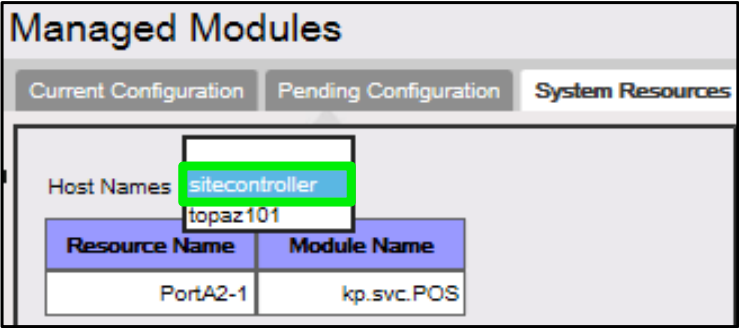

To verify the Kitchen Printer Service started correctly, navigate to the [System Resources] tab.
From the Host Names drop down list, select <site controller>.
The Kitchen Printer Service is displaying for the selected host (site controller) on Port A2-1 where the kitchen printer is physically connected.
POS Terminal
When the kitchen printer is physically connected to a POS terminal, utilize the below instructions to configure Kitchen Printer Service.
Navigate to Managed Modules
Navigate to Configuration Client > Tools > Managed Modules.
Open Current Configuration
The Managed Modules window displays. Select the [Current Configuration] tab.
Select the host
From the Host Names drop down list, select [site controller] as the host to configure.
Select Kitchen Printer Service
From the Select Module drop down list, select the [Kitchen Printer Service] managed module.
Do Not Enable Kitchen Printer Service. It must remain un selected until all configuration is complete and settings verified.
Host Parameters
Host Names
A set list populated with the site controller and all POS Terminals that are 'reachable' to be configured. Reachable is defined as Topaz/Ruby2 that are functioning properly after being installed and have established connectivity with the site controller.
Select Module
A set list populated with all the configurable modules for the selected system. The modules listed for the site controller are the same systems listed in previous applications, with the exception of 'Kitchen Printer Service.'

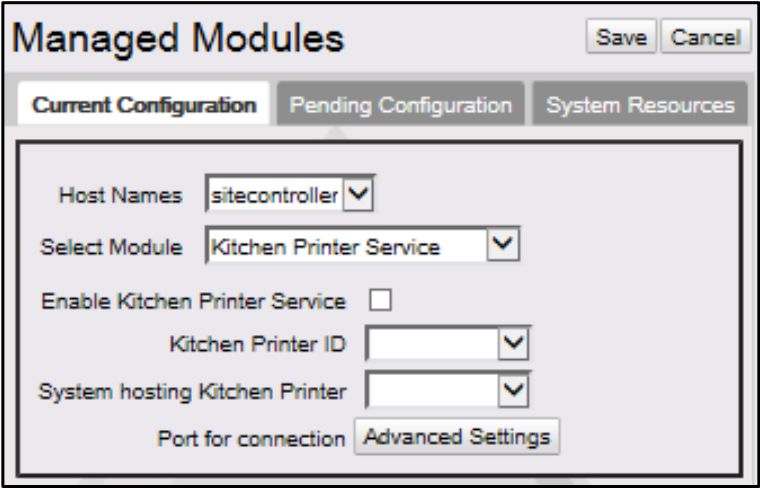

Open the current configuration form
The current configuration form displays.
Select the kitchen printer ID
From the Kitchen Printer ID drop down list, select [kp.svc.POS].

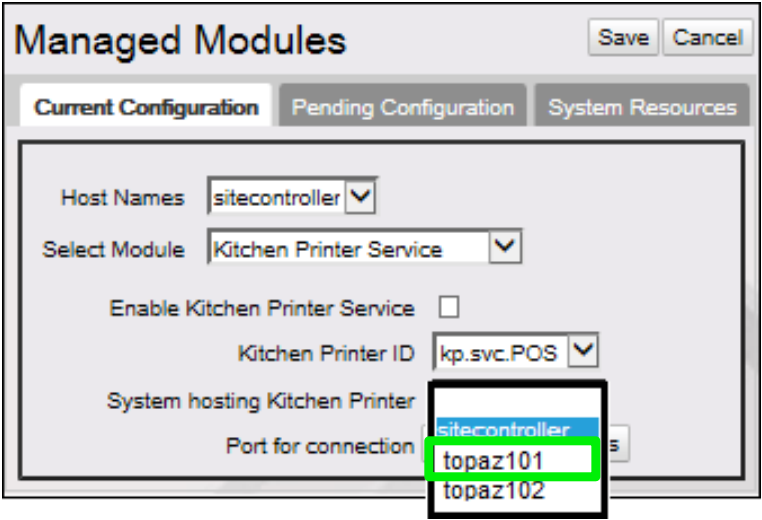

Select the POS terminal
From the System hosting Kitchen Printer drop down list, select the <POS terminal> the kitchen printer is connected to.
Open Advanced Settings
Select the Port for connection [Advanced Settings] option.
Advanced Settings
Kitchen Printer ID
Sets the host's unique ID for the Remote Method Invocation (RMI) Registry. There already exists an RMI service on the site controller that all hosts utilize to present their Managed Module framework RMI services. The Kitchen Printer ID is also needed when configuring the 'Rule Manager' for Sales to use the Kitchen Printer feature.
System Hosting Kitchen Printer
Defines the system host, in this case the site controller, that the kitchen printer device is physically connected to.
Port for Connection
Sets the dock the kitchen printer will be connected to on the site controller.
Advanced Settings
Lists the port connections on the site controller where the kitchen printer can be physically connected.
The Port for Connection drop down list will always populate with all available (unassigned) COM Ports of the host selected.
Select the COM port
From the Port for Connection list, select the <COMM Port> the RS-232 cable for the kitchen printer will be connected to on the POS Terminal.
In the above example, the kitchen printer has been connected to the host Topaz101 via COM 7.
Before selecting Enable Kitchen Printer Service, verify the configured settings, including the port connection.

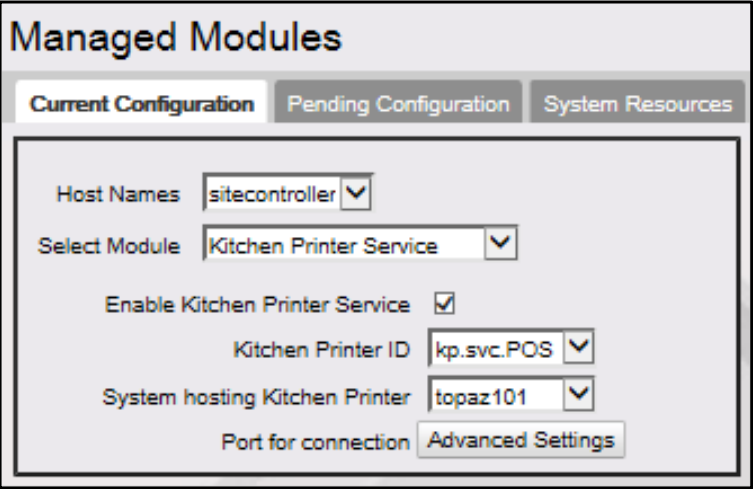

Enable the service

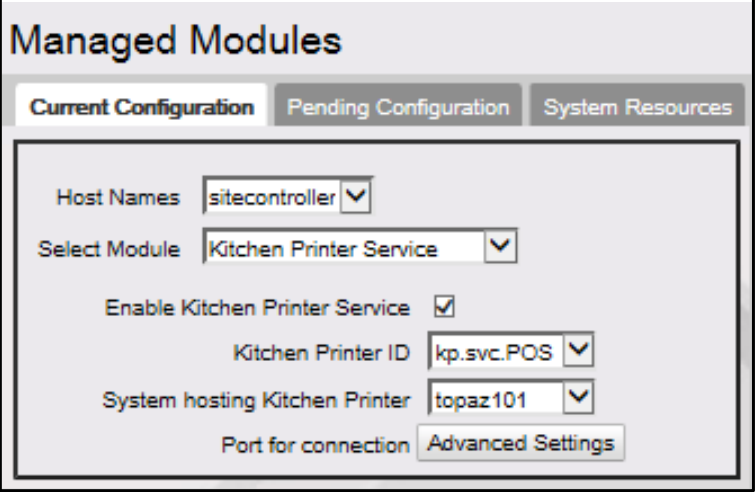

Lastly, select the [Enable Kitchen Printer Service] checkbox to enable print services.
Save and verify
Select [Save] to accept, or [Cancel] to exit without saving changes.
To verify the Kitchen Printer Service started correctly, navigate to the [System Resources] tab.
From the Host Names drop down list, select the <host>.
Verify the configured <COM Port> displays the Kitchen Printer Service (kp.svc.POS).
The Kitchen Printer Service is displaying for the selected host (topaz101) on COM 7 where the kitchen printer is physically connected.
COM Port Assignments
View POS terminal resources to determine the resources that have been allocated; this will assist with device assignment and reassignment.
To view a POS terminals COM Port assignments, follow the instructions below.
The serial communication port assignments for the host selected display.
By default, installed POS application has been configured to use the maximum number of eight system resources (COM Ports) to eight devices (Modules) as in the example above.
Reassigning COM Ports
When a kitchen printer is moved from one port to another on the same POS terminal, the system needs to be reconfigured to reflect that change. Utilize the instructions below to configure the change in Kitchen Printer Service.
Prior to the configuration change, the RS-232 must be disconnected and moved to the new port on the host POS terminal.

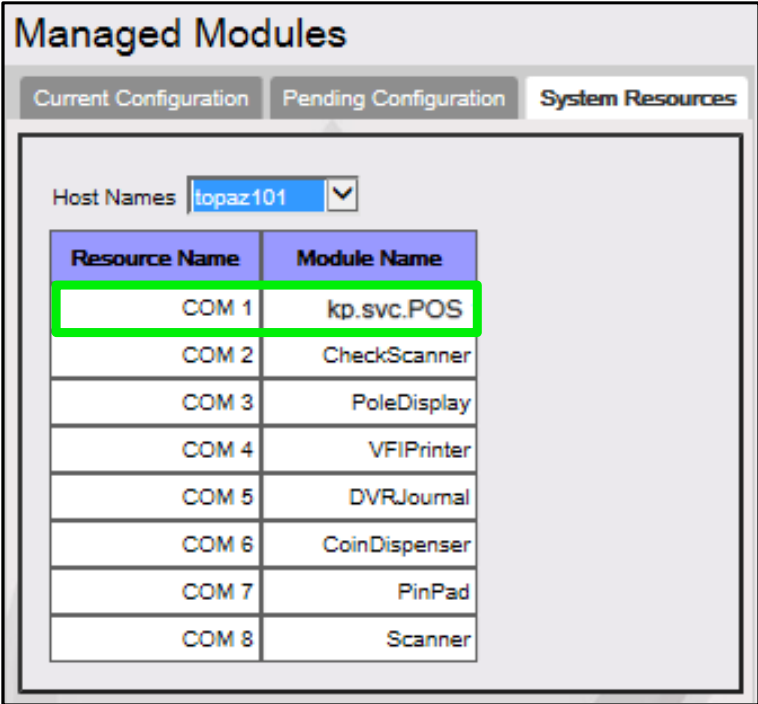

In this example, topaz101 currently hosts a kitchen printer on COM1. An unused port is available to move the kitchen printer to on COM2.
Open Current Configuration
From the Managed Modules form, select the [Current Configuration] tab.
Select the host
From the Host Names drop down list, select [site controller].
Select Kitchen Printer Service
From the Select Modules drop down list, select the [Kitchen Printer Service] managed module.
Open the current configuration form
The current configuration form displays.
Disable the service
Deselect [Enable Kitchen Printer Service] by un selecting the check box for this option.
Do Not Enable Kitchen Printer Service. It must remain un selected until the configuration change is complete and settings verified.
Open Advanced Settings
Select the Port for connection [Advanced Settings] option.
Clear the port assignment
From the Port for connection drop down list, select the [blank space].
Save the change
Select [Save].
Select the POS terminal
From the System hosting Kitchen Printer drop down list, select the <POS terminal> the kitchen printer is connected to.

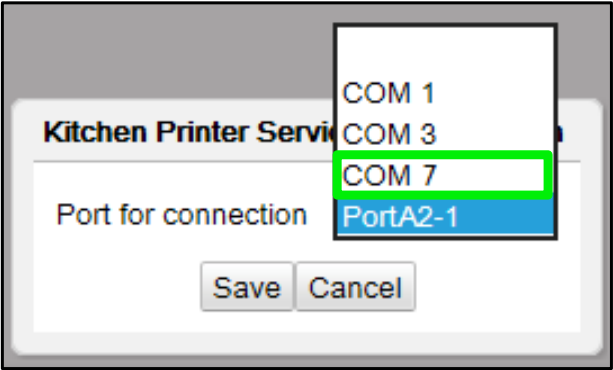

Select the new COM port
From the Port for Connection list, select the <COMM Port> the RS-232 cable for the kitchen printer will be connected to on the POS Terminal.
The Port for Connection drop down list will always populate with all available (unassigned) COM Ports of the host selected.

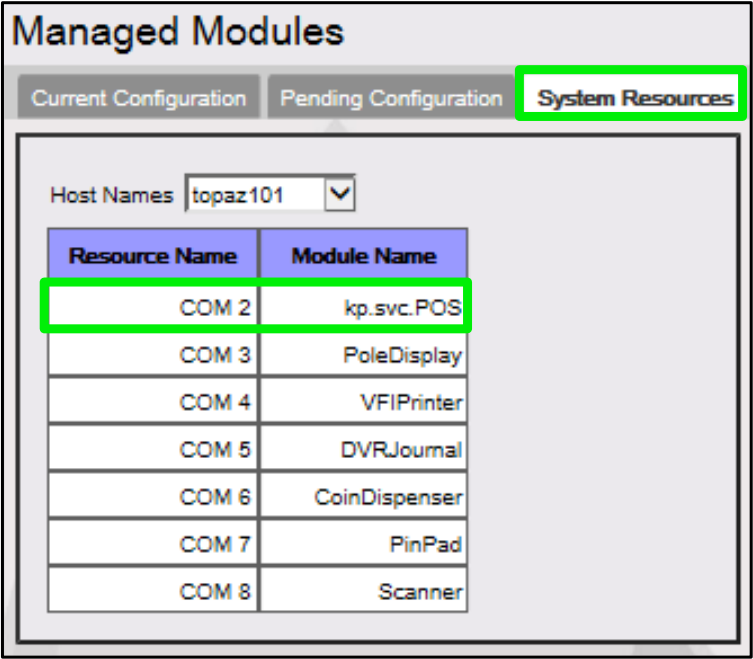

In the above example, the kitchen printer has been moved on the topaz101 from COM1 to COM2.
Save the change
Select [Save].
Re-enable the service
Lastly, select the [Enable Kitchen Printer Service] checkbox to enable print services.
Save and verify
Select [Save] to accept, or [Cancel] to exit without saving changes.
To verify the Kitchen Printer Service started correctly, navigate to the [System Resources] tab.
From the Host Names drop down list, select the <host> to view.
Verify the configured <COM Port> displays the Kitchen Printer Service (kp.svc.POS).
The Kitchen Printer Service is displaying for the selected host (topaz101) on COM2 where the kitchen printer is physically connected.
Reassign COM Ports on POS Terminal with All Resources Allocated
To assign a kitchen printer to a POS terminal that has all of its resources allocated, first determine what resources are not being used by the site, and disable that COM Port for reassignment to another device.
Utilize the instructions below to free up a resource on the POS terminal for a kitchen printer.
Prior to the configuration change, the RS-232 must be disconnected and moved to the port new POS host terminal.

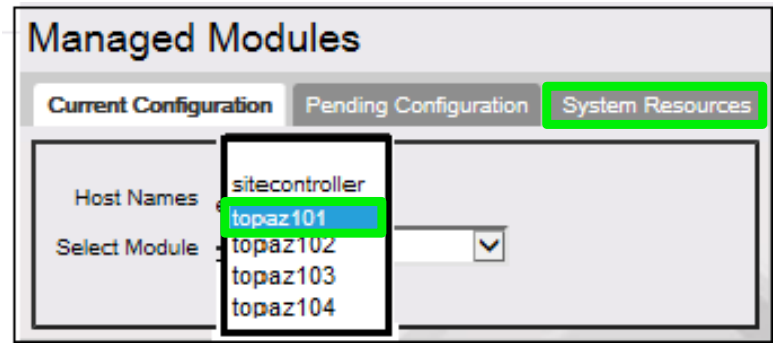

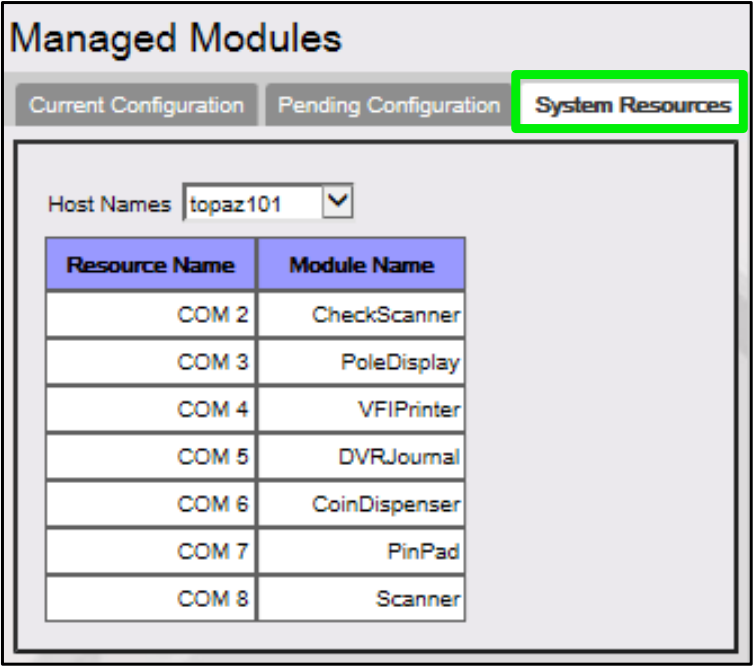

View the POS terminal's COM Port assignments.
View the resource assignments for the POS terminal the kitchen printer is going to be assigned to determine what device can be disabled.

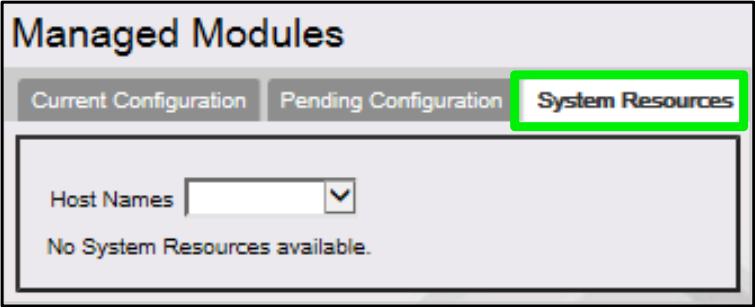

Open System Resources
From the Managed Modules form, select the [System Resources] tab.
Select the host

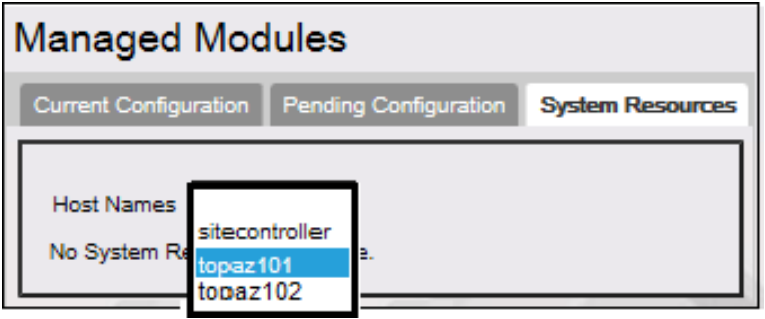

From the Host Names drop down list, select the <POS terminal> (Host) to view assigned resources.
The serial communication port assignments for the host selected display.

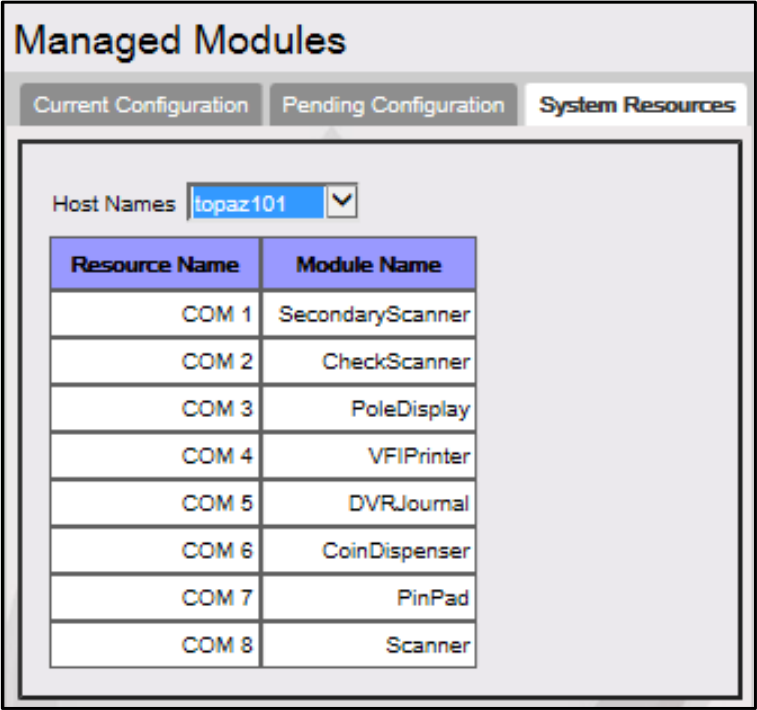

In the above example, the host (topaz101) currently has all resources assigned. It has been determined that the site does not use the secondary scanner on COM1. This COM Port will be disabled and reassigned to the kitchen printer.
Unassign a COM Port
Before a kitchen printer can be assigned, the unavailable resource must be disabled to free the COM Port.
Open Current Configuration
From the Managed Modules form, select the [Current Configuration] tab.
Select the host
From the Host Names drop down list, select the <POS Terminal> to unassign a resource.
Select the module
From the Select Module drop down list, select the <Module> to be unassign.

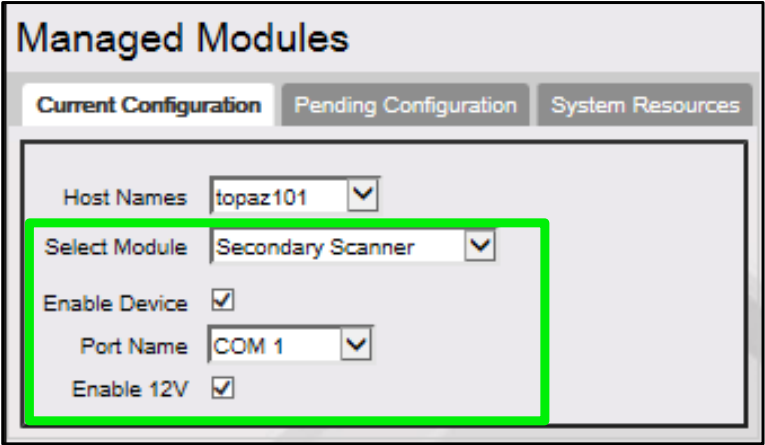

Disable the device
The current configuration displays for that assigned device (secondary scanner).
To unassign a device, un select [Enable Device].
Save the change
Click [Save].
Verify the change
To verify the device was unassigned, go to the [System Resources] tab.
From the Host Names drop down list, select the <host>.
Select the <Host> to view the assigned devices.
In this example, COM1 has been unassigned for topaz101 and no longer displays as a resource.
Reassign the COM Port.
The next step is to reassign the freed COM Port to the desired device (i.e. kitchen printer).
Open Current Configuration
Navigate back to the [Current Configuration] tab.
Select the host
From the Host drop down list, select the [site controller].
Select Kitchen Printer Service
From the Select Modules drop down list, select the [Kitchen Printer Service] managed module.
Open the current configuration form
The current configuration form displays.
Do Not Enable Kitchen Printer Service. It must remain un selected until all configuration is complete and settings verified.
Select the kitchen printer ID
From the Kitchen Printer ID drop down list, select [kp.svc.POS].
Select the POS terminal
From the System hosting Kitchen Printer drop down list, select the <POS terminal> the kitchen printer is connected to.
Open Advanced Settings
Select the Port for connection [Advanced Settings] option.
Select the unassigned COM port
From the Port for Connection list, select the unassigned <COMM Port>.
The Port for Connection drop down list will always populate with all available (unassigned) COM Ports of the selected host.
In the above example, the kitchen printer has been configured to the host (Topaz101) via COM 1.
Before selecting Enable Kitchen Printer Service, verify the configured settings, including the port connection.
Enable the service
Lastly, select the [Enable Kitchen Printer Service] checkbox to enable print services.
Save and verify
Select [Save] to accept, or [Cancel] to exit without saving changes.
To verify the Kitchen Printer Service started correctly, navigate to the [System Resources] tab.
Select the <host name>
Verify the configured COM Port displays with the Kitchen Printer Service (kp.svc.POS).
The Kitchen Printer Service is displaying for the selected host (topaz101) on COM1 where the kitchen printer is physically connected.
Configuring a Business Rule
Once a host has been defined, create and apply a business rule for all PLUs being directed to the kitchen printer. Before defining a business rule, determine what departments contain the PLUs to be directed to the kitchen printer. Also define what PLUs within those departments are food service items.
Open Rule Manager
Navigate to Configuration Client > Tools > Rule Manager.

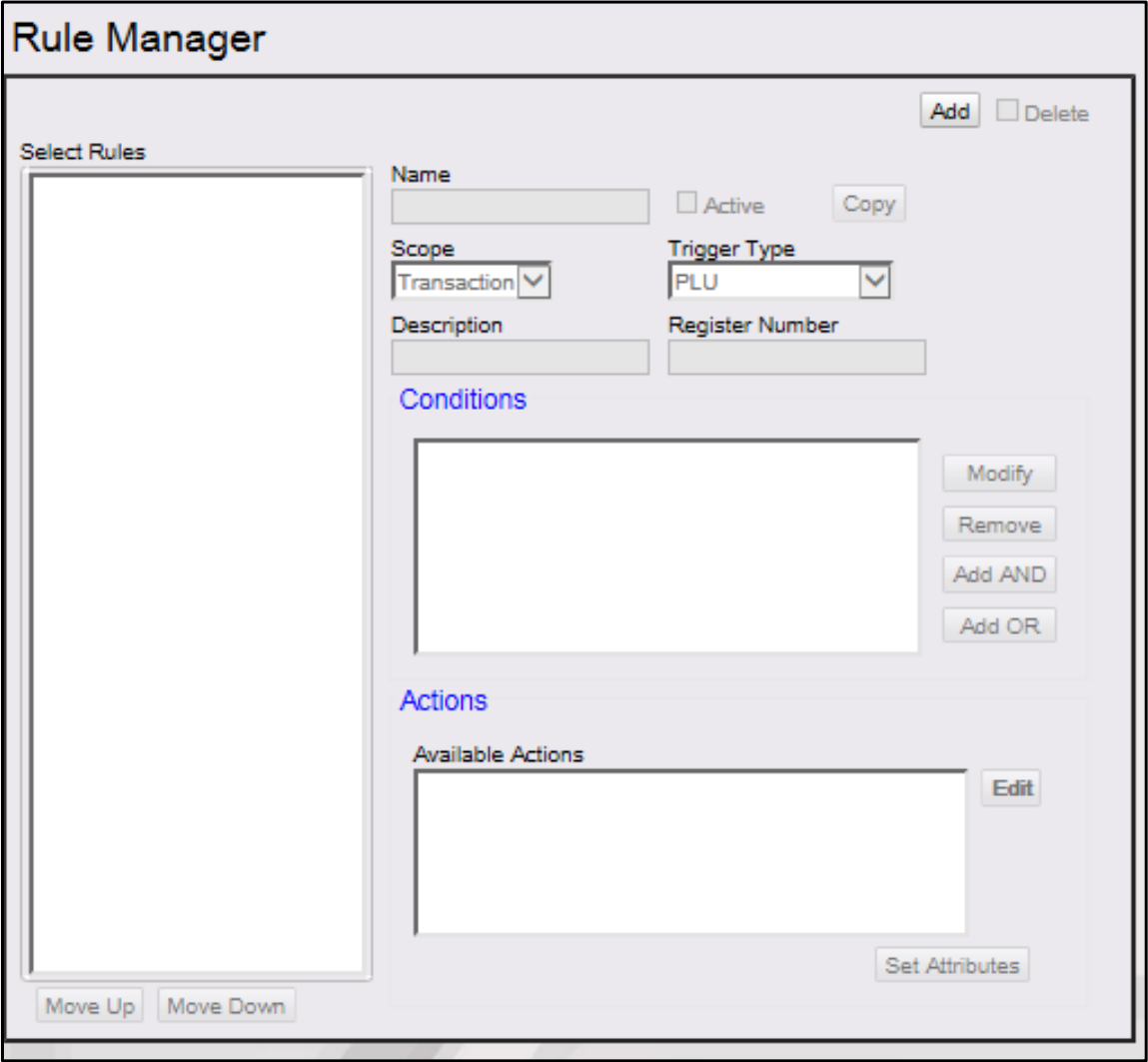

The Rule Manager window displays.
Add a rule
Click [Add] to create a rule.
Delete: Allows an existing Rule to be deleted.

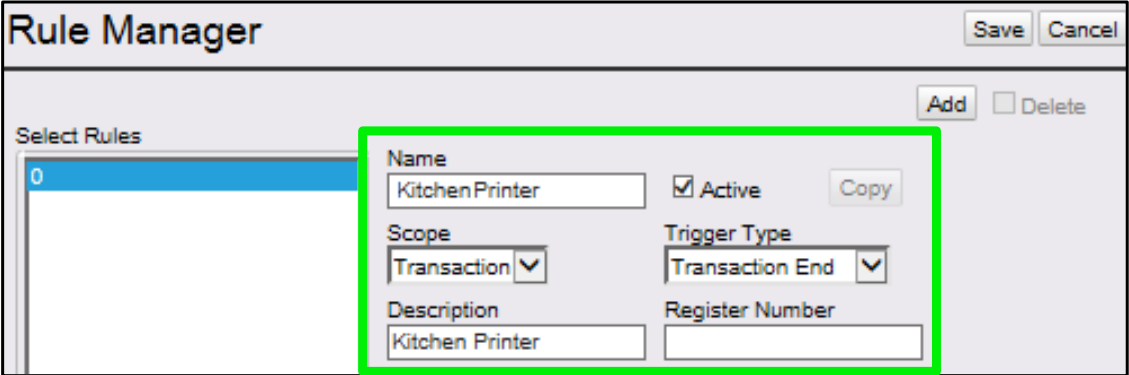

Configure rule parameters
Configure the new Rule parameters.
Rule Manager
Sets PLUs that will be sent to the kitchen printer.
Name
Enter a unique name to identify the new rule.
Active
Select [Active] to enable the new rule.
Scope
Select [Transaction].
Trigger Type
Select [Transaction End] as the item that will trigger the rule to be evaluated.
Description
Enter an applicable description for the new rule.
Register Number
Leave blank.
Add conditions
From the Conditions parameters > click [Add] to add conditions for the rule.
Conditions
Condition Type
Set [PLU] to be evaluated when the rule is triggered.
Operator Type
Select [like].

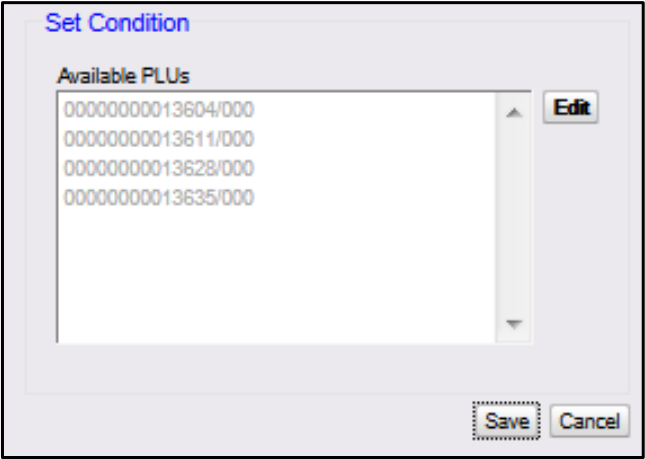

Edit the condition
From the Set Condition parameter > select [Edit].
The Retrieve PLUs pop up window displays to select PLUs that will trigger the rule and send that PLU to the kitchen printer.
Retrieve PLUs by department
If the PLUs have been grouped by departments, retrieve the PLUs by department.
Select the <Department> to which all the food service PLUs are assigned.
Select the [Retrieve Page] option.
All food service PLUs assigned to that department will populate the Available PLUs window.
Select the PLUs
If all PLUs assigned to the department print to the kitchen printer, click [Select All]. If not, select them individually.
Add all food service PLUs, then remove the PLUs that don't apply as part of a modify process. Once the PLUs are added, the display can be sorted by PLU or description to facilitate review. Remove PLUs that don't apply.
Add the PLUs
Click [Done] to add PLUs to the Rule.
Click [Save].

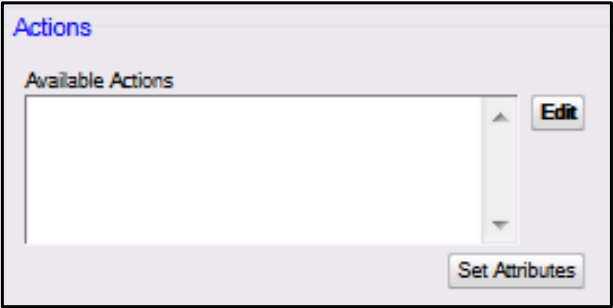

Configure actions
Under the Actions parameter > click [Edit] to determine the actions that occur when the rule is triggered and the condition evaluates to true.
Select the kitchen printer action
Click [Enter/Select Kitchen Printer].
Select [Done].
Select [Enter/Select Kitchen Printer].
Set attributes
Click [Set Attributes].
From Set Actions, go to Enter Kitchen Printer.
Enter or select the kitchen printer

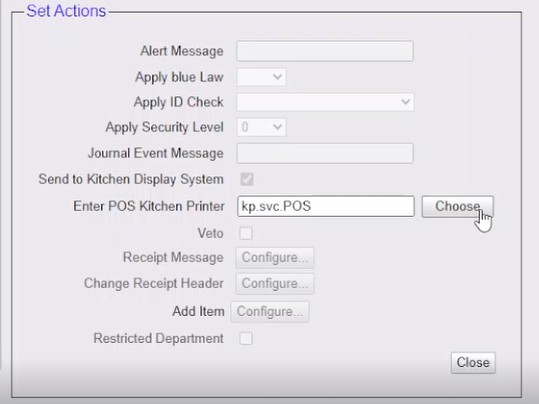

If a field of 'Enter POS Kitchen Printer' is displayed, type kp.svc.POS into the field and click [Choose]. 'kp.svc.POS' is the Kitchen Printer ID set within Tools > Managed Modules > Site Controller > Kitchen Printer Service > Kitchen Printer ID field. Once this text field is entered in and selected, it will become a drop down menu after the changes are saved.

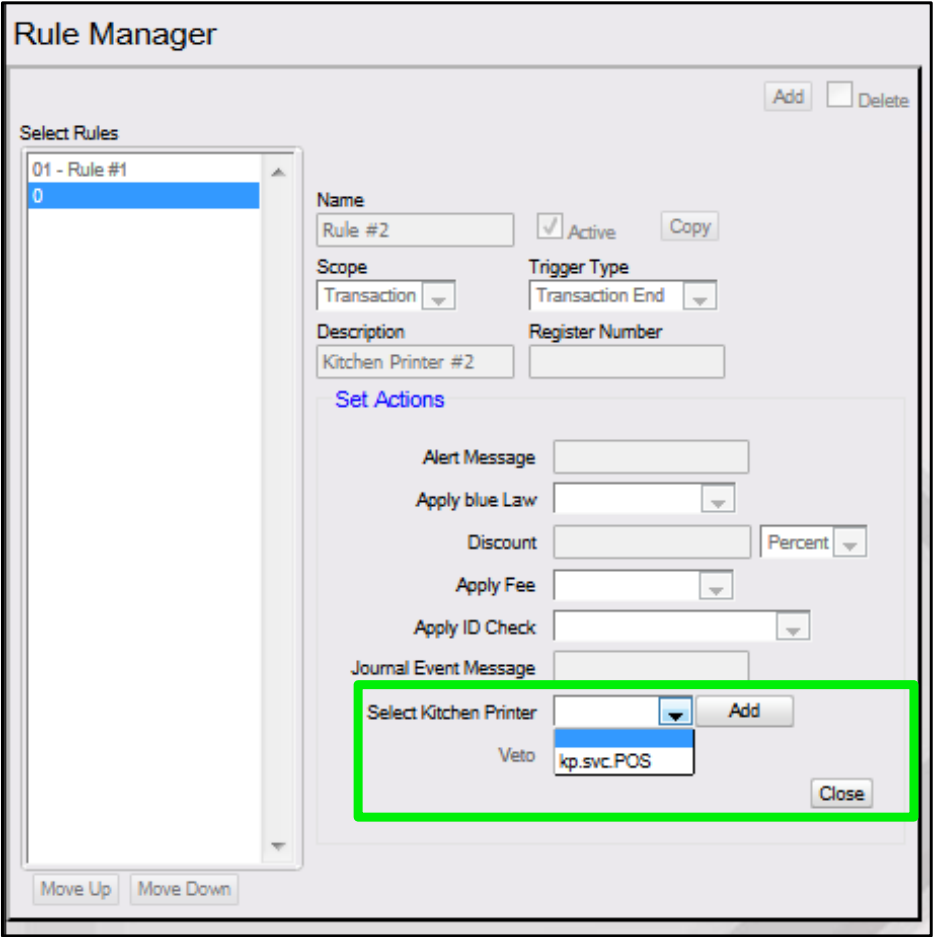

If a drop down list is available and the field name shows 'Select Kitchen Printer', select kp.svc.POS from the drop down list.
Add and close
Leave all other fields blank. Click [Add].
Select [Close].

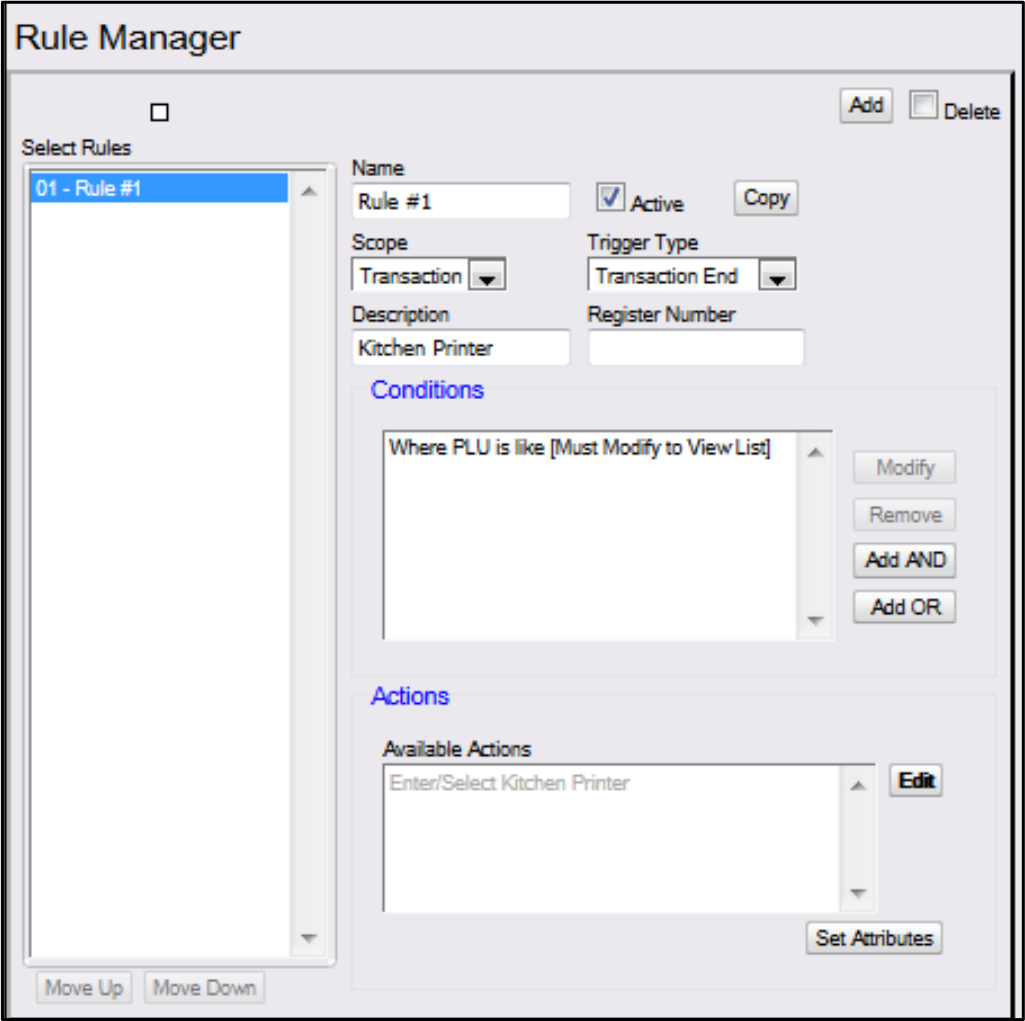

Save the rule
Click [Save] to accept and finalize all changes, or [Cancel] to exit without saving changes.
Refresh configuration
To apply new settings, go to: Configuration Client > Tools > Refresh Configuration.
Finalize and test
Log out and back in to all POS terminals after any setting modifications to allow these changes to take affect.
Test a qualifying PLU that should be directed to the kitchen printer.
If there are any issues with the POS terminals, reboot the Commander Site Controller or RubyCi and retest.
Final Steps and Testing
Place a food service order
Place a food service order at the POS terminal.
Complete the transaction
Suspend (transaction must be recalled) or tender (complete the transaction) the transaction.
Verify the kitchen printer output
A second copy containing only food service items should print on the kitchen printer.
See the Using the Kitchen Printer section for food service ordering steps and receipts.
Troubleshoot printing issues
If there are any printing issues:
Recheck the configuration settings. Specifically recheck the Kitchen Printer assignment within Rule Manager and confirm the information saved and the correct kitchen printer ID is assigned.
Go to Tools > Refresh Configuration.
Log out of the register and log back in and run another test.
Reboot the Commander Site Controller or RubyCi and retest.
If the Back Office application specifically restricts any zero priced PLUs, contact the application's Support Desk to accommodate zero priced PLUs.
Using the Kitchen Printer
Food Service Orders
Based on store policy, a food transaction can either be tendered (completed) when the food is ordered, or suspended for payment after the food has been prepared.
Regardless of the method, the appropriate items and subitems will print to the kitchen printer and on POS terminal receipt printer. All food service sales are tracked in the POS reporting structure, and T-Logs.
Recall and Suspend
The first time a transaction is suspended, the transaction is sent to the kitchen printer.
If after recall, and a new food item is added to the transaction and suspended, it is sent to the kitchen printer.
If the transaction is tendered and is was not suspended, or a new food item was added after recall, it is sent to the kitchen printer.
Placing Orders
Record the order
The clerk records the food service order at the POS terminal. In this example, a [12" Cold Sub] is selected.
Build the order through the menu chain
A series of menus (or menu chain) leads the clerk through "building" a food service or service order.
The clerk selects the Turkey and Ham 12" sub.
The clerk is prompted for a bread selection.
The clerk is prompted for a cheese selection.
The clerk is prompted for a condiment selection.
Dismiss the menu
The clerk selects [Dismiss Menu].
Tender or suspend the transaction
The clerk tenders or suspends the transaction.
If payment is taken when the food service order is placed:
The clerk tenders the transaction.
The transaction receipt prints on the POS terminal printer.
The appropriate food service items print to the kitchen printer with the words: ** PAID ** at the bottom of the ticket.
If payment is made after a food order is prepared:
The clerk selects [SUSPEND] to process the order.
A receipt prints at the POS terminal with: ***PAYMENT DUE *** on the bottom of the ticket.
The appropriate food service items print to the kitchen printer with a scanning bar code and ** PAYMENT DUE ** at the bottom of the ticket.
A scanning bar code is also generated on the ticket to allow multiple orders to be brought into the same transaction when the order receipt is scanned.
Completing Suspended Orders
When a clerk suspends an order, it must be recalled in order to complete the transaction (i.e. tender a payment).
An order can be taken on one POS terminal and suspended, then recalled on a different POS terminal for payment.
Open suspended orders

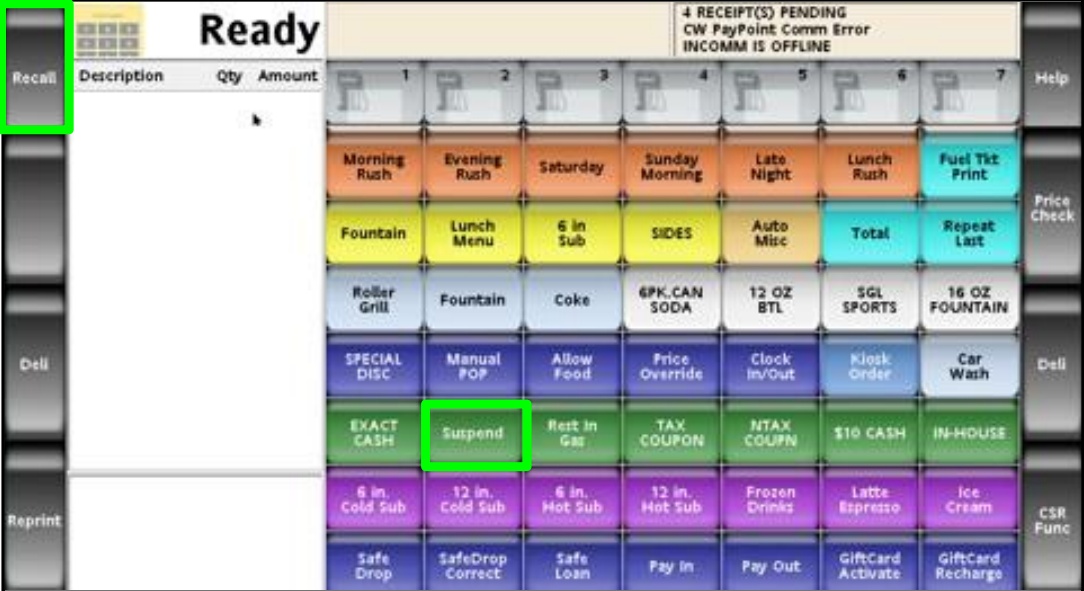

The clerk selects the [Suspend] or [Recall] function from the POS terminal to view a list of all suspended orders.
Select the transaction
The clerk selects the <Suspended Transaction> from transaction list.
If the Recall function is not programmed, the Suspend function must be used. The Suspend function is used to recall an order only when the POS terminal is between sales. This limits the number of orders (one) to be brought into the same transaction. Once a transaction has begun, the Suspend function suspends the current transaction.
Tender the transaction
The clerk tenders the transaction.
Complete the sale
The receipt prints at the POS terminal and the transaction is completed.
GLOSSARY OF TERMS
The following terms and definitions will assist the reader with understanding the content of the Feature Reference.
Host
The platform or system the application is running on. This will be one of Commander/Controller or POS (Topaz/Ruby2)
Kitchen Printer
The Kitchen Printer feature is used specifically to print food service items when orders are placed for food service preparation.
PLU
Price Look Up
POS System
Includes the POS (Point of Sale) terminals, site controller and the electronic payment system (EPS).
POS Terminal
Refers to either a Topaz or Ruby2 platform. The terms POS terminal, Topaz and Ruby2 are interchangeable.
Price Book
PLU File.
Site Controller
This is the Site Controller platform or host. The term Site Controller can apply to either the RubyCi, Commander Site Controller or Sapphire.
Subitem
A PLU that is sold only in combination with an item, changes or defines how the item is prepared and may be zero-priced. Examples include Tomato, Mayo, Ketchup, American Cheese, Extra American Cheese, Toasted, etc.
Appendix
Exercise - Creating a Food Service Menu
The following exercise has been provided to assist in understanding food service menu preparation.
Food Service Menu
Establish Food Service Items and SubItems
Establish a PLU range for all new food service items
Establish a PLU range for all new food service items. These items must be placed in the price book and assigned departments, item descriptions and prices.
For exercise purposes only, the following range of PLUs will be utilized:
3101
Ham 6"
3.89
Deli
3102
Ham and Swiss 6"
3.89
Deli
3103
Turkey 6"
3.89
Deli
3104
Turkey and Bacon 6"
3.89
Deli
3105
Turkey and Ham 6"
3.89
Deli
3106
Club 6"
3.89
Deli
3107
BLT 6"
3.89
Deli
3108
Chicken Salad 6"
3.89
Deli
3109
Egg Salad 6"
3.89
Deli
3111
Ham 12"
5.89
Deli
3112
Ham and Swiss 12"
5.89
Deli
3113
Turkey 12"
5.89
Deli
3114
Turkey and Bacon 12"
5.89
Deli
3115
Turkey and Ham 12"
5.89
Deli
3116
Club 12"
5.89
Deli
3117
BLT 12"
5.89
Deli
3118
Chicken Salad 12"
5.89
Deli
3119
Egg Salad 12"
5.89
Deli
3130
Extra Swiss
.50
Deli
3131
Extra American
.50
Deli
3132
Extra Prov
.50
Deli
3130/001
Extra Swiss
1.00
Deli
3131/001
Extra American
1.00
Deli
3132/001
Extra Prov
1.00
Deli
3133
Bacon 6"
.75
Deli
3133/001
Bacon 12"
1.50
Deli
Establish a PLU range for all new food service subitems
Establish a PLU range for all new food service subitems. Place these subitems in the price book and assign departments, item descriptions and prices.
In this exercise, zero-priced items are not being tracked, so the same PLU can be used with 6" and 12" sandwiches. When zero-priced items are being tracked, separate PLUs must be used for the zero-priced subitems to be used with 6" and 12" sandwiches.
For exercise purposes only, the following range of zero priced subitems will be utilized:
4001
Sub Roll 6"
0.00
Deli
4002
Kaiser Roll
0.00
Deli
4003
White Bread
0.00
Deli
4004
Wheat Bread
0.00
Deli
4005
Sour Dough Bread
0.00
Deli
4006
Sub Roll 12"
0.00
Deli
4007
Tomato
0.00
Deli
4008
Lettuce
0.00
Deli
4009
Olives
0.00
Deli
4010
Onions
0.00
Deli
4011
Mayo
0.00
Deli
4012
Mustard
0.00
Deli
4013
Honey Mustard
0.00
Deli
4014
Ranch Dressing
0.00
Deli
4015
Oil and Vinegar
0.00
Deli
4016
Salt
0.00
Deli
4017
Pepper
0.00
Deli
Establish the following zero priced subitems
For exercise purposes only, the following range of zero priced subitems will be utilized:
3130 / 002
Swiss NC
0.00
Deli
3131 / 002
American NC
0.00
Deli
3132 / 002
Provolone NC
0.00
Deli
3133 / 002
Bacon NC
0.00
Deli
4018
No Cheese
0.00
Deli
4019
No Bacon
0.00
Deli
4020
Pickles
0.00
Deli
4021
Ketchup
0.00
Deli
Group Items and SubItems
Group the foods items together
Group the foods items together that have similar characteristics. For example, all 6" and 12" subs have the same condiment options and prices for upsells.
The 6" subs have more bread options, but those options are available to all items available as a 6 in sub and are priced the same.
Ham and Swiss could be on its own menu and offer only swiss cheese or extra swiss cheese on the Cheese Menu, but it would require additional menus.
Change the name of the sandwich to "Ham and Cheese" to simplify.
Present sandwiches by size
Present sandwiches by size because upsells (subitems) are priced according to the sandwich size.
Use the same next menu
The POS terminal presents the same "next" menu in the chain regardless of the selection made.
Place 6" sandwiches on one menu
Place 12" sandwiches on a different menu
Each of these food groups will be represented by a menu chain that consists of a series of menus.
Design the Menu
Place sandwiches in the same relative location
Place sandwiches in the same relative location on each menu.
The 6" and 12" Sub menus below represent the first menu in each of two menu chains. A selection from either menu is automatically assumed to be an item.
Subitems (components of these items) are printed in the same sequence. When planning subitems, consider how a sandwich is built.
Create bread menus
Bread options vary by size; create menus for the bread selections for both 6" and 12" menus.
The bread for a 12" sub still requires a menu to offer it as an "option," even if it is the only option available.
Create cheese menus
Create menus for the cheese selections for both 6" and 12" menus.
Cheese is included in the sandwich price, but extra cheese is an upsell.
Not all customers order cheese. The clerk can press the [NEXT] option to make a no cheese selection, then proceed to the next menu in the chain.
The same options can be grouped in the same relative positions with different PLUs for the upsells.
Create bacon menus
Create menus for the bacon selections for both 6" and 12" menus.
Create a toppings menu
Create one menu for free topping selections for both 6" and 12" menus.
One menu is sufficient for both size subs because a single menu can be used in multiple menu chains, and sales are not being tracked for free toppings.
The user may be tempted to add these additional items to other menus (i.e. bacon on the cheese menu). However, if a customer wants a specific type of cheese as well as bacon, this would imply a multi-select menu.
The POS terminal permits only one multi-select menu in the chain and it must be the last menu. Bacon would need to be its own separate menu because toppings haven't require multiple-select options.
Configure POS Terminal Menus
The POS terminal configuration is completed in several stages:
Configure each worksheet as a POS Menu
All menus are "Expanded Single-Select" except Toppings.
The Toppings menu should be "Expanded Multi-Select."
Configure the Menu Chain for each item type
Select [Menu Chain] as the menu type.
Select [Order Menu].
Select the menus in order
6" Subs
6" Bread
6" Cheese
6" Bacon
Toppings
Assign menu chains
Assign menu chains to a <key> on the POS terminal.
Test each chain
Test each chain to verify the ordering process flows properly.
Menu Worksheet
Last updated
