# Electronic Safe

The Electronic Safe (E-Safe) feature was developed to support the E-Safe and Point of Sales Systems (POS) message exchange during the Electronic Safe Drop and Safe Loan operations.

## Overview

### Feature Description

The Electronic Safe (E-Safe) feature was developed to support the E-Safe and Point of Sales Systems (POS) message exchange during the Electronic Safe Drop and Safe Loan operations. This feature includes integrated functionality where actions taken at the POS terminal are automatically registered with E-Safe. An IP Connection to the E-Safe hardware allows safe drop amounts to be retained and totaled to compare with the total amounts in the safe upon shift or day close.

{% hint style="info" %}
To comply with PCI private IP addressing requirements, the Verifone Enhanced Zone Router disallows communication with public Internet addresses, and no longer openly routes or allows communication from or to IP addresses outside of the defined Verifone Zone.

192.168.31.x is reserved for the Verifone POS zone.

All device IP addresses that communicate with the POS Zone must be RFC1918 compliant, meaning they are any private addresses that fall in the following IP scope:

10.0.0.0 - 10.255.255.255

172.16.0.0 - 172.31.255.255

192.168.0.0 - 192.168.255.255

Establishing communication between a store network device and a Verifone device in the POS Zone using the Verifone Enhanced Zone Router requires the following configurations:

* Assign an RFC1918 compliant address to the store device.
* Configure the store router/firewall to allow the device to communicate to the EZR.
* Use Config Client to define a Device Specific Route to the device.
* Configure a Port Forwarding rule on the EZR for the device. (Requires both the device IP address and port number.)

For detailed setup instructions, refer to the following documents:

* Commander Site Controller Network Configuration Guide
* Enhanced Zone Router Installation Guide
  {% endhint %}

### Requirements

#### **Supported Software**

* Commander Site Controller base 39 software and higher.
* Tidel Sentinel E-Safe software version 3.90 or higher.
  * The Tidel Sentinel E-Safe software version appears on the first line of the display on the E-Safe in ready mode.

#### **Supported Hardware**

* Commander Site Controller with Topaz / Ruby2
* RubyCi with Topaz / Ruby2

![](https://content.gitbook.com/content/5nJgnNKJ9ZrZeEdr7pqh/blobs/v3eSPKwsyuUz4CsufzDI/images/image9.jpeg)

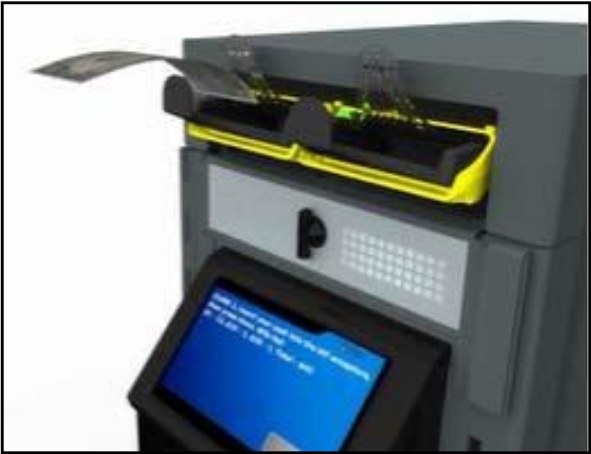

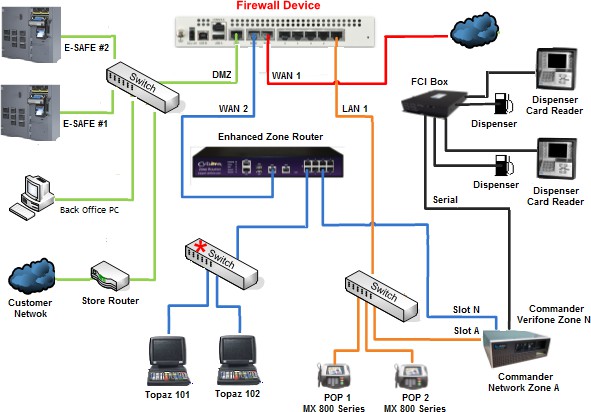

<p align="center"><em>E-Safe in a Topaz-Commander Site Controller Environment</em></p>


---
